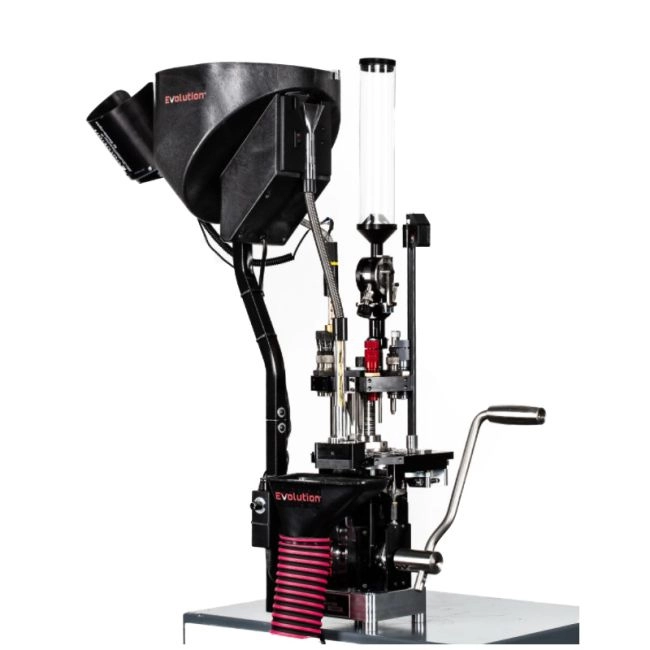

Mark 7 Evolution Mechanical Reloader 9mm

The Mark 7 Evolution Mechanical Reloader is a massive 10 station tool head machine that is based on the commercial grade Mark 7 Revolution introduced in 2017.

The extra stations offer long awaited options to reloaders wanting to do it all in one pass. To Swage and Trim, as well as use a bullet feeder while still checking their powder charge

The Mark 7 Evolution machine includes a 11” case feeder with shell plate, mechanical powder dropper and standard stacked primers.

The Evolutions features include:

•  A massive, robust 10-station tool head which allows you to “have it all”:
• Station 1: Case feeding
• Station 2: Sizing and decapping
• Station 3: Swage/Case trim
• Station 4: Primer seat with hold down
• Station 5: Resize/neck expansion
• Station 6: Powder drop
• Station 7: Powder check
• Station 8: Bullet Dropper
• Station 9: Seating
• Station 10: Crimping

while also including a :

• Large capacity, fast feeding case collator
• Ergonomically designed operating handle, which can be assembled for right or left-hand use
• New and improved case feed system using roller bearings and user-adjustable springs
• Double Sleeve support for the tool head creates a smoother more in-line function
• Gear-based precision-fit overall operation
• Design for automation, and for many optional upgrades, which include the Mark 7 Automatic Primer collator, the Mark 7 Evolution Autodrive and the complete suite of Mark 7 Sensors and parts.

The overall machine dimensions are 39" tall (99.1 cm) X 19.5" (49.5cm) wide x 14" (35.6cm) deep

with Machine weight being 29.5kg (65lbs)
